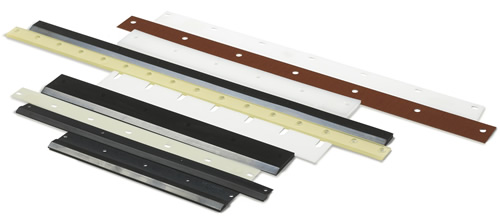

Wash-Up Blades
You demand the highest performance from each part of the printing press. SANTEC has developed a range of replacement wash-up blades which give excellent performance in all conditions. Together with strong chemical resistance to today's aggressive inks and solvents, our blades have proven their high quality both to the Original Equipment Manufacturer (OEM) and to the end user.
SANTEC Replacement Wash-Up Blades are the best:
- Manufactured in our own plant to OEM specifications, tried and tested with OEM approval.
- Quick wash-up performance.
- Specifically formulated steel, rubber, polyurethane, plastic, and other specialty materials which ensure maximum performance and wear resistance for todays aggressive inks and solvents, both standard and UV.
- Unique bonding process between metal and rubber so that there is never a bond failure.
- Sharp and perfectly straight wiping edge.
- Specially treated metal for maximum corrosion resistance.
- Safe metal parts so that there are no sharp edges or burrs.
- Shipment available within 24 hours on standard and specialty parts.
- We can fit every press in your shop. Our in-house design staff can quickly meet any custom requirement or special order. For special orders, please complete the form here.
If you don't see your press, refine your choice by size. Also, we can customize any product.
Santec # / Mfr Part # |
Press Name / Model | Press Width | Material |
Holes / Slots |
Short Dim. | Length | Price Per Item | |
1490-04
|
MULTI - (A-M) 1250 |
10in. | BELTING | 4 |
1.25in. 32mm |
10.75in. 273mm |
$18.21 | |
1470-10
|
ATF-CHIEF-DAVIDSON CHIEF 15 |
9in. | BELTING | 4 |
1.5in. 38mm |
10.75in. 273mm |
$18.21 | |
1470-10
|
ATF-CHIEF-DAVIDSON CHIEF 17 |
9in. | BELTING | 4 |
1.5in. 38mm |
10.75in. 273mm |
$18.21 | |
1470-05
|
ATF-CHIEF-DAVIDSON CHIEF 17 |
9in. | BELTING | 4 |
1.5in. 38mm |
10.94in. 278mm |
$18.21 | |
1470-05
|
ATF-CHIEF-DAVIDSON CHIEF 17 |
9in. | BELTING | 4 |
1.5in. 38mm |
10.94in. 278mm |
$18.21 | |
1470-07
|
MULTI - (A-M) 1250W |
10in. | BELTING | 4 |
1.313in. 33mm |
11.00in. 279mm |
$18.21 | |
1470-07
|
MULTI - (A-M) 2850 |
10in. | BELTING | 4 |
1.313in. 33mm |
11.00in. 279mm |
$18.21 | |
1470-13
|
ATF-CHIEF-DAVIDSON CHIEF 15 |
9in. | BELTING | 4 |
1.625in. 41mm |
11.13in. 283mm |
$18.21 | |
1470-08
67-13-028 |
ATF-CHIEF-DAVIDSON CHIEF 15 |
11in. | BELTING | 4 |
1.5in. 38mm |
11.19in. 284mm |
$18.21 | |
1470-08
67-13-028 |
ATF-CHIEF-DAVIDSON CHIEF 17 |
11in. | BELTING | 4 |
1.5in. 38mm |
11.19in. 284mm |
$18.21 | |
1470-01
1456-01 |
ATF-CHIEF-DAVIDSON CHIEF 15 |
9in. | BELTING | 4 |
1.5in. 38mm |
11.50in. 292mm |
Request Quote | |
1470-01
1456-01 |
ATF-CHIEF-DAVIDSON CHIEF 17 |
9in. | BELTING | 4 |
1.5in. 38mm |
11.50in. 292mm |
Request Quote | |
1470-02
|
AB DICK 350 |
11in. | BELTING | 4 |
1.375in. 35mm |
11.69in. 297mm |
Request Quote | |
1470-02
|
AB DICK 360 |
11in. | BELTING | 4 |
1.375in. 35mm |
11.69in. 297mm |
Request Quote | |
1470-04
|
RYOBI-ITEK 1115 |
10in. | BELTING | 4 |
1.5in. 38mm |
11.75in. 298mm |
Request Quote | |
1470-03
|
ATF-CHIEF-DAVIDSON CHIEF 15 |
9in. | BELTING | 4 |
1.5in. 38mm |
11.88in. 302mm |
$18.21 | |
1470-03
|
ATF-CHIEF-DAVIDSON CHIEF 17 |
9in. | BELTING | 4 |
1.5in. 38mm |
11.88in. 302mm |
$18.21 | |
1470-03
|
ATF-CHIEF-DAVIDSON CHIEF 17 |
9in. | BELTING | 4 |
1.5in. 38mm |
11.88in. 302mm |
$18.21 | |
1470-12
|
MULTI - (A-M) 1450 |
12in. | BELTING | 3 |
1.625in. 41mm |
12.63in. 321mm |
Request Quote | |
1470-09
|
AB DICK 9800 |
11in. | BELTING | 4 |
1.375in. 35mm |
12.88in. 327mm |
Request Quote | |
1490-45
|
RYOBI-ITEK WIZER TRAY |
11in. | BELTING | 4 |
1.5in. 38mm |
13.00in. 330mm |
Request Quote | |
1470-14
|
AB DICK |
11in. | BELTING | 6 |
1.312in. 33mm |
13.13in. 334mm |
Request Quote | |
1490-07
|
ATF-CHIEF-DAVIDSON CHIEF 22 |
22in. | BELTING | 14 |
1in. 25mm |
25.00in. 635mm |
Request Quote | |
1550-55
|
HANTSCHO MK 2 / SLT |
38in. | BELTING | 19 |
1.125in. 29mm |
40.00in. 1016mm |
Request Quote | |
1535-03
|
SAKURAI / OLIVER NO. UNIT |
19in. | BRASS | 8 |
0.9in. 23mm |
21.00in. 533mm |
Request Quote | |
1470-11
|
GESTETNER |
13in. | FIBER | 4 |
1.563in. 40mm |
13.88in. 353mm |
Request Quote | |
1280-14
04.101.180 |
HEIDELBERG KS |
18in. | PLASTIC-ACETAL | 8 |
1.625in. 41mm |
20.88in. 530mm |
$29.42 | |
1280-14
04.101.180 |
HEIDELBERG KSB |
18in. | PLASTIC-ACETAL | 8 |
1.625in. 41mm |
20.88in. 530mm |
$29.42 | |
1490-30
|
ATF-CHIEF-DAVIDSON CHIEF 20 |
20in. | FIBER | 7 |
1.5in. 38mm |
22.00in. 559mm |
Request Quote | |
1490-17
|
ATF-CHIEF-DAVIDSON |
20in. | FIBER | 7 |
2in. 51mm |
22.00in. 559mm |
Request Quote | |
1280-13
|
HEIDELBERG KSBA |
15in. | PLASTIC-ACETAL | 8 |
1.825in. 46mm |
22.41in. 569mm |
$29.99 | |
1280-01
08.010.180/1 |
HEIDELBERG KRZ |
22.5in. | M/R | 10 |
1.975in. 50mm |
23.56in. 598mm |
$36.41 | |
1500-22
|
HARRIS (SCHRIBER) LTV |
22in. | FIBER | 8 |
1.625in. 41mm |
24.25in. 616mm |
$33.10 | |
1500-23
|
HARRIS (SCHRIBER) LTV |
22in. | FIBER | 9 |
1.625in. 41mm |
24.50in. 622mm |
$33.10 | |
1490-81
|
HARRIS (SCHRIBER) LTV |
22in. | FIBER | 9 |
2.5in. 64mm |
24.50in. 622mm |
Request Quote | |
1500-49
|
ATF-CHIEF-DAVIDSON CHIEF 22 |
22in. | FIBER | 7 |
2.5in. 64mm |
24.56in. 624mm |
Request Quote | |
1495-08
499DE111 |
ATF-CHIEF-DAVIDSON CHIEF 22 |
22in. | FIBER | 7 |
1.5in. 38mm |
24.94in. 633mm |
Request Quote | |
1490-18
|
ATF-CHIEF-DAVIDSON CHIEF 24 |
24in. | FIBER | 9 |
2in. 51mm |
26.00in. 660mm |
Request Quote | |
1500-73
|
SOLNA |
24in. | FIBER | 9 |
2in. 51mm |
27.38in. 695mm |
Request Quote | |
1500-73
|
SOLNA |
25in. | FIBER | 9 |
2in. 51mm |
27.38in. 695mm |
Request Quote | |
1280-22
|
HEIDELBERG |
27in. | PLASTIC-ACETAL | 10 |
1.81in. 46mm |
28.34in. 720mm |
$33.86 | |
1290-07
S101801 |
HEIDELBERG LETTER PRESS |
21in. | FIBER | 8 |
1.8in. 46mm |
28.41in. 722mm |
$39.99 | |
1280-16
05.010.180 |
HEIDELBERG LETTERPRESS |
22in. | FIBER | 10 |
1.765in. 45mm |
30.31in. 770mm |
Request Quote | |
1540-60
|
MERGENTHALER |
29in. | FIBER | 0 |
1.75in. 44mm |
30.63in. 778mm |
Request Quote | |
1410-86
|
ATF-CHIEF-DAVIDSON CHIEF 29 |
29in. | FIBER | 9 |
2.5in. 64mm |
31.75in. 806mm |
Request Quote | |
1280-17
06.010.180 |
HEIDELBERG SBB |
22in. | FIBER | 10 |
1.765in. 45mm |
31.88in. 810mm |
Request Quote | |
1280-17
06.010.180 |
HEIDELBERG SBBS |
22in. | FIBER | 10 |
1.765in. 45mm |
31.88in. 810mm |
Request Quote | |
1490-84
|
ATF-CHIEF-DAVIDSON |
29in. | FIBER | 9 |
1.75in. 44mm |
32.00in. 813mm |
Request Quote | |
1320-51
3004-51 |
KBA PLANETA/ROYAL ZE |
29in. | FIBER | 9 |
4in. 102mm |
32.75in. 832mm |
Request Quote | |
1280-08
|
HEIDELBERG SBB |
22in. | PLASTIC-ACETAL | 8 |
1.975in. 50mm |
32.88in. 835mm |
$36.41 | |
1280-08
|
HEIDELBERG SBG |
22in. | PLASTIC-ACETAL | 8 |
1.975in. 50mm |
32.88in. 835mm |
$36.41 | |
1280-20
|
HEIDELBERG SBBZ LOWER |
22.25in. | FIBER | 10 |
1.975in. 50mm |
33.06in. 840mm |
Request Quote | |
1650-01
499-DL-2002 |
ATF-CHIEF-DAVIDSON CHIEF 29A |
29in. | FIBER | 11 |
2.5in. 64mm |
34.00in. 864mm |
Request Quote | |
1650-01
499-DL-2002 |
ATF-CHIEF-DAVIDSON SUPER CHIEF |
29in. | FIBER | 11 |
2.5in. 64mm |
34.00in. 864mm |
Request Quote | |
1650-01
|
SOLNA |
30in. | FIBER | 11 |
2.5in. 64mm |
34.00in. 864mm |
Request Quote | |
1280-19
10190.00 |
HEIDELBERG SBBZ UPPER |
22.25in. | FIBER | 10 |
1.975in. 50mm |
34.44in. 875mm |
$38.61 | |
1300-12
|
HEIDELBERG SBD |
32in. | FIBER | 10 |
1.765in. 45mm |
34.81in. 884mm |
Request Quote | |
1520-05
|
HARRIS (SCHRIBER) LTP |
36in. | FIBER | 9 |
3in. 76mm |
39.50in. 1003mm |
Request Quote | |
1520-05
|
HARRIS (SCHRIBER) LTN |
36in. | FIBER | 9 |
3in. 76mm |
39.50in. 1003mm |
Request Quote | |
1500-126EP
|
GRAPHICON/ILLMA |
13in. | M/EPDM | 3 |
1.575in. 40mm |
15.50in. 394mm |
Request Quote | |
1500-127EP
|
GRAPHICON/ILLMA |
16in. | M/EPDM | 3 |
1.575in. 40mm |
19.19in. 487mm |
Request Quote | |
1520-63EP
|
DIDDE-GLASSER VIP |
18in. | M/EPDM | 7 |
2.75in. 70mm |
21.00in. 533mm |
Request Quote | |
1495-23EP
|
KOMORI LITHRONE |
26in. | M/EPDM | 6 |
1.375in. 35mm |
28.75in. 730mm |
Request Quote | |
1330-10EP
3046-10 |
HARRIS (SCHRIBER) XL1200 |
26.5in. | M/EPDM | 8 |
2.25in. 57mm |
29.13in. 740mm |
Request Quote | |
1495-30EP
|
KOMORI AUTO WASH |
28in. | M/EPDM | 11 |
1.875in. 48mm |
30.13in. 765mm |
$66.21 | |
1280-02EP
68.010.180/01J |
HEIDELBERG SM 72 |
28.38in. | M/EPDM | 11 |
2.375in. 60mm |
31.09in. 790mm |
$54.39 | |
1300-09EP
|
HEIDELBERG SM 74 |
29in. | M/EPDM | 9 |
2.25in. 57mm |
32.50in. 826mm |
Request Quote | |
1495-166EP
|
SHINOHARA (FUJI) 79 |
31in. | M/EPDM | 13 |
1.9in. 48mm |
32.95in. 837mm |
Request Quote | |
1420-53EP
|
TENSOR |
36in. | M/EPDM | 13 |
2.5in. 64mm |
38.00in. 965mm |
Request Quote | |
1420-51EP
|
TENSOR T-500 |
40in. | M/EPDM | 14 |
2.5in. 64mm |
42.00in. 1067mm |
Request Quote | |
1300-01EP
|
HEIDELBERG SM 102 |
40in. | M/EPDM | 11 |
2.35in. 60mm |
42.94in. 1091mm |
$75.19 | |
1520-43EP
|
MITSUBISHI 3FH |
40in. | M/EPDM | 11 |
1.575in. 40mm |
43.25in. 1099mm |
$94.58 | |
1495-73EP
|
KOMORI |
40in. | M/EPDM | 15 |
1.875in. 48mm |
43.75in. 1111mm |
$95.67 | |
1495-146EP
P 0728150 |
KBA PLANETA/ROYAL ZE 105 |
41.3in. | M/EPDM | 0 |
1.813in. 46mm |
44.88in. 1140mm |
$91.59 | |
1340-64EP
|
HAMILTON STEVENS 42 |
42in. | M/EPDM | 13 |
2.25in. 57mm |
45.78in. 1163mm |
Request Quote | |
1495-174
|
BILLHOFER COATER |
M/EPDM | 0 |
2in. 51mm |
47.25in. 1200mm |
Request Quote | ||
1520-62EP
|
KBA PLANETA/ROYAL ZE VARIANT |
55in. | M/EPDM | 17 |
2.562in. 65mm |
59.50in. 1511mm |
$121.44 | |
1520-72EP
|
KBA PLANETA/ROYAL ZE 162 |
64in. | M/EPDM | 19 |
2.5in. 64mm |
66.91in. 1700mm |
$121.40 | |
1550-59
|
SOLNA |
M/R | 2 |
2.5in. 64mm |
36.38in. 924mm |
Request Quote | ||
1520-79
309496.00 |
DIDDE-GLASSER |
M/R | 0 |
1.94in. 49mm |
7.50in. 191mm |
Request Quote | ||
1490-51
|
GALLUS R-160B |
8in. | M/R | 5 |
1.438in. 37mm |
8.75in. 222mm |
Request Quote | |
1495-148
|
PLEXTOR AR-10 |
M/R | 5 |
1.61in. 41mm |
9.85in. 250mm |
$23.83 | ||
1495-52
|
GALLUS R-160 |
9in. | M/R | 6 |
1.375in. 35mm |
9.94in. 252mm |
$23.74 | |
1495-152
|
ARROW 9000 |
M/R | 4 |
2in. 51mm |
10.25in. 260mm |
Request Quote | ||
1490-56
|
GESTETNER MAIN 312 |
9in. | M/R | 4 |
1.563in. 40mm |
10.38in. 264mm |
Request Quote | |
1500-97
|
GESTETNER MAIN 311 |
9in. | M/R | 4 |
2in. 51mm |
10.44in. 265mm |
$19.86 | |
1495-76
|
ARROW 5000 |
9in. | M/R | 4 |
1.5in. 38mm |
10.50in. 267mm |
Request Quote | |
1495-77
|
ARROW 5000 |
9in. | M/R | 4 |
2in. 51mm |
10.50in. 267mm |
Request Quote | |
1490-76
|
ATF-CHIEF-DAVIDSON CHIEF 15 |
9in. | M/R | 4 |
1.5in. 38mm |
10.75in. 273mm |
Request Quote | |
1630-01
13-6-163342 |
MULTI - (A-M) 1250- 1250NSG |
10in. | M/R | 5 |
1.875in. 48mm |
10.75in. 273mm |
$24.33 | |
1630-01
13-6-163342 |
MULTI - (A-M) 2650 |
10in. | M/R | 5 |
1.875in. 48mm |
10.75in. 273mm |
$24.33 | |
1630-01
13-7-182283 |
MULTI - (A-M) |
10in. | M/R | 5 |
1.875in. 48mm |
10.75in. 273mm |
$24.33 | |
1350-24
4532-24 |
ATF-CHIEF-DAVIDSON CHIEF 17 |
9in. | M/R | 4 |
2.5in. 64mm |
10.75in. 273mm |
Request Quote | |
1350-24
4532-24 |
MULTI - (A-M) 1250W |
10in. | M/R | 4 |
2.5in. 64mm |
10.75in. 273mm |
Request Quote | |
1350-24
4532-24 |
MULTI - (A-M) 1250LW |
10in. | M/R | 4 |
2.5in. 64mm |
10.75in. 273mm |
Request Quote | |
1350-24
4532-24 |
MULTI - (A-M) 2850 |
10in. | M/R | 4 |
2.5in. 64mm |
10.75in. 273mm |
Request Quote | |
1350-24
4532-24 |
MULTI - (A-M) 1250 |
10in. | M/R | 4 |
2.5in. 64mm |
10.75in. 273mm |
Request Quote | |
1350-58
4532-58 |
MULTI - (A-M) 1250 |
10in. | M/R | 5 |
2.5in. 64mm |
10.75in. 273mm |
Request Quote | |
1490-54
|
MULTI - (A-M) 1250W |
10in. | M/R | 6 |
1.85in. 47mm |
10.81in. 275mm |
Request Quote | |
1410-31
7752-31 |
ATF-CHIEF-DAVIDSON CHIEF 15/17 T-51 HD |
9in. | M/R | 4 |
2in. 51mm |
10.81in. 275mm |
$24.38 |
